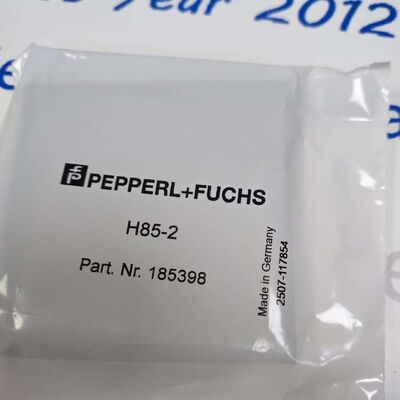

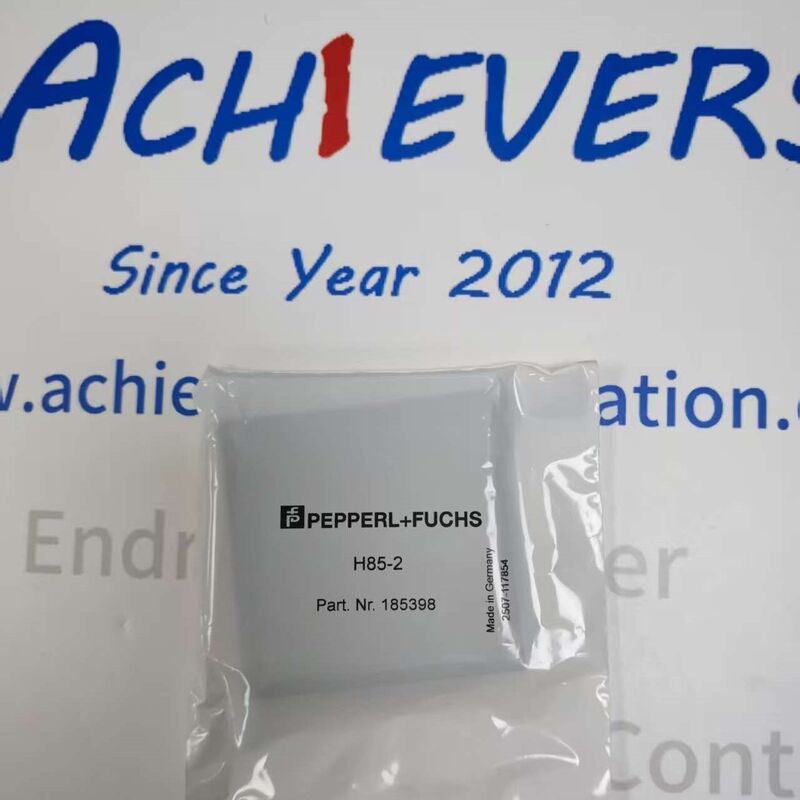

Pepperl+Fuchs REF-H85-2 Square Photoelectric Reflector
Product Details:
Manufacturer : Pepperl + Fuchs
Product No. : REF-H85-2
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

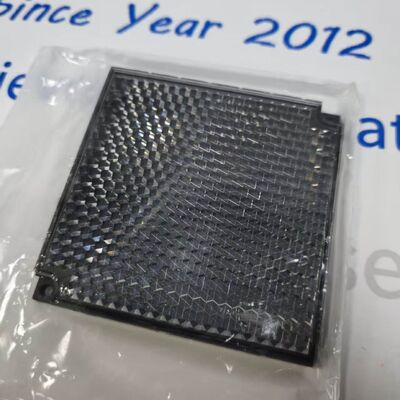

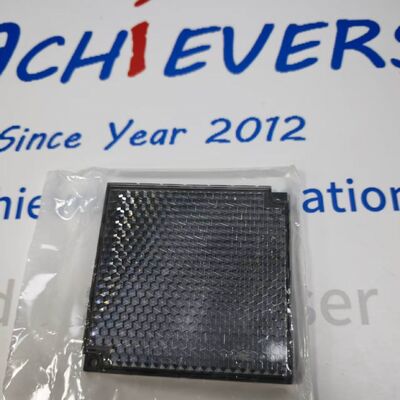

The Pepperl+Fuchs REF-H85-2 is a standard square corner-cube reflector designed as a matching accessory for Pepperl+Fuchs polarized and standard retroreflective photoelectric sensors across ML100, RL28, RL31, RL39 and ML4.2 series product lines. This reflector features a uniform micro corner-cube optical surface that delivers stable, high light return performance to maximize effective sensing distances for retroreflective sensor setups.
Detail:
| Spec Category |
Exact Parameter Value for REF-H85-2 |
| Full Model Code |
REF-H85-2 |
| Product Category |
Retroreflective Corner-Cube Reflector (Photoelectric Sensor Accessory) |
| Optical Technology |
Micro corner-cube retroreflective lens array |
| Compatible Sensor Types |
All Pepperl+Fuchs standard & polarized retroreflective photoelectric sensors |
| Light Spectrum Compatibility |
Visible red modulated LED sensor light sources |
| Optical Surface Uniformity |
Consistent light return across full 84.5×84.5 mm active area |
| Regulatory Compliance |
RoHS compliant, No SVHC substances per EU REACH regulation |
| Standard Matching Sensor Series |
ML100, RL28, RL31, RL39, ML4.2, OBT, OBR series |
| Functional Purpose |
Provides reference reflective target for retroreflective sensor object detection |
| Physical & Environmental Item |
Standard Technical Data |
| Overall Outer Dimensions |
84.5 mm (W) × 84.5 mm (H) × 9 mm (Thickness) |
| Optical Layer Material |
Transparent scratch-resistant PMMA |
| Base Housing Material |
Rigid impact-resistant ABS plastic |
| Mounting Configuration |
Two integrated pre-drilled corner mounting holes for bolt fixing |
| Operating Ambient Temperature |
-30 °C ~ +60 °C (-22 °F ~ 140 °F) |
| Storage & Transport Temperature |
-40 °C ~ +70 °C (-40 °F ~ 158 °F) |
| Relative Humidity Tolerance |
5% ~ 95%, non-condensing |
| Ingress Resistance |
Dust-resistant, splash-proof for dry & mild washdown factory environments |
| Net Unit Weight |
Approx. 32 g |
| Construction Shape |
Flat square rectangular form factor |
| Surface Hardness |
Anti-scratch PMMA optical face for long service life |
