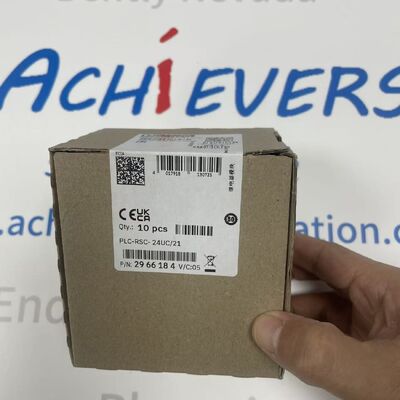

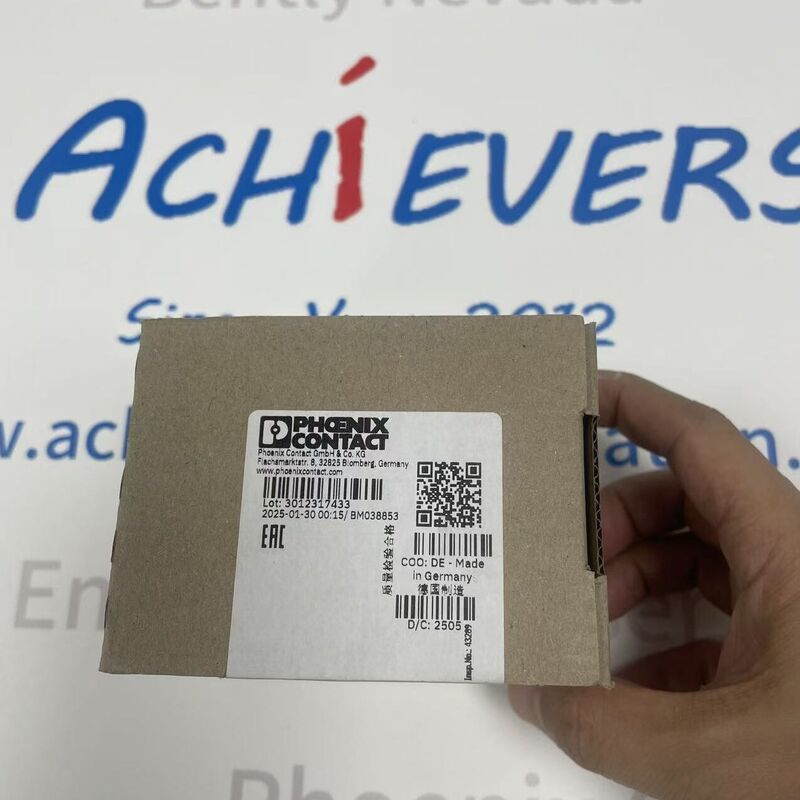

Phoenix Contact PPLC-RSC-24UC21 2966184 Relay Module
Product Details:
Manufacturer : Phoenix Contact
Product No. : 2966184
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Phoenix Contact PPLC-RSC-24UC21 2966184 is a high-performance interface relay module engineered for universal industrial automation applications. As a key product in Phoenix Contact’s PLC-Interface product family, it integrates a pluggable miniature relay with power contacts and a basic terminal block with screw connections, combining reliable switching performance with a ultra-compact design. This module is specifically tailored for DIN rail mounting, ensuring seamless integration into control cabinets across diverse industrial sectors while delivering stable operation in harsh environmental conditions.
Detail:
|
Specification Category
|
Details
|
|
Product Type
|
Interface Relay Module
|
|
Product Family
|
PLC-Interface
|
|
Manufacturer
|
Phoenix Contact
|
|
Part Number
|
PPLC-RSC-24UC21 2966184
|
|
Mounting Type
|
DIN Rail (NS 35/7.5)
|
|
Operating Mode
|
100% Operating Factor
|
|
Nominal Input Voltage (Uₙ)
|
24V AC/DC
|
|
Input Voltage Range (20°C)
|
19.4V AC/DC – 33.6V AC/DC
|
|
Contact Configuration
|
1 Changeover Contact (SPDT)
|
|
Connection Method
|
Screw Connection
|
|
Operating Temperature Range
|
-40°C to +60°C
|
|
Degree of Protection
|
IP20
|
|
Flammability Rating (Housing)
|
UL 94 V0
|
|
Dimensions (W×H×D)
|
6.2 mm × 80 mm × 94 mm
|
|
Performance Parameter
|
Value
|
|
Typical Input Current at Uₙ
|
11 mA (24V AC); 8.5 mA (24V DC)
|
|
Maximum Power Dissipation (Nominal Condition)
|
0.26 W
|
|
Test Voltage (Winding/Contact)
|
4 kV AC (50 Hz, 1 min)
|
|
Rated Surge Voltage
|
6 kV
|
|
Typical Response Time
|
6 ms
|
|
Typical Release Time
|
15 ms
|
|
Maximum Switching Voltage
|
250 V AC/DC
|
|
Minimum Switching Voltage
|
5 V (100 mA)
|
|
Limiting Continuous Current
|
6 A
|
|
Maximum Inrush Current
|
10 A (4 s)
|
|
Contact Material
|
AgSnO (Silver-Tin Oxide)
|
|
Minimum Switching Current
|
10 mA (12 V)
|
