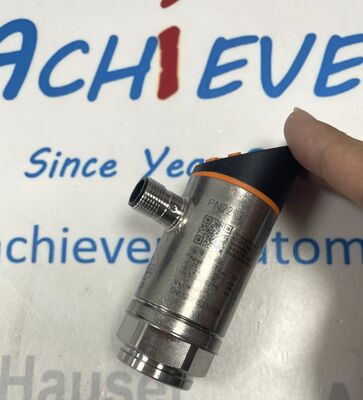

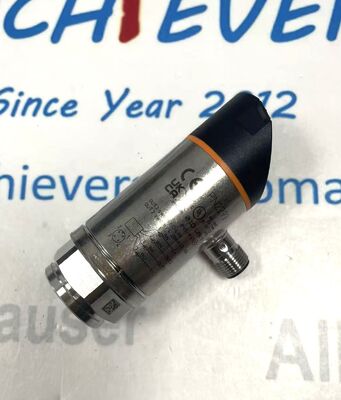

IFM PN2293 high-performance pressure sensor
Product Details:
Manufacturer : IFM
Product No. : PN2293
https://www.achievers-automation.com More Products
The ifm PN2293 is a high-performance pressure sensor from ifm Electronic , engineered for precise measurement of liquids and gases in harsh industrial environments. As a core model in the ifm PN product series, it integrates dual configurable outputs (switching, analog, IO-Link) and a 直观 red/green status display, enabling real-time monitoring of pressure ranges and quick status identification. Featuring a robust ceramic-capacitive measuring cell, gold-plated contacts, and rotating process connection, this sensor delivers exceptional long-term stability, overload protection, and installation flexibility—making it ideal for demanding applications in manufacturing, automation, and process control. It complies with global standards including CE, CRN, and UKCA, ensuring reliability across international industrial systems.
Description:
|
Basic Information
|
Product Model
|

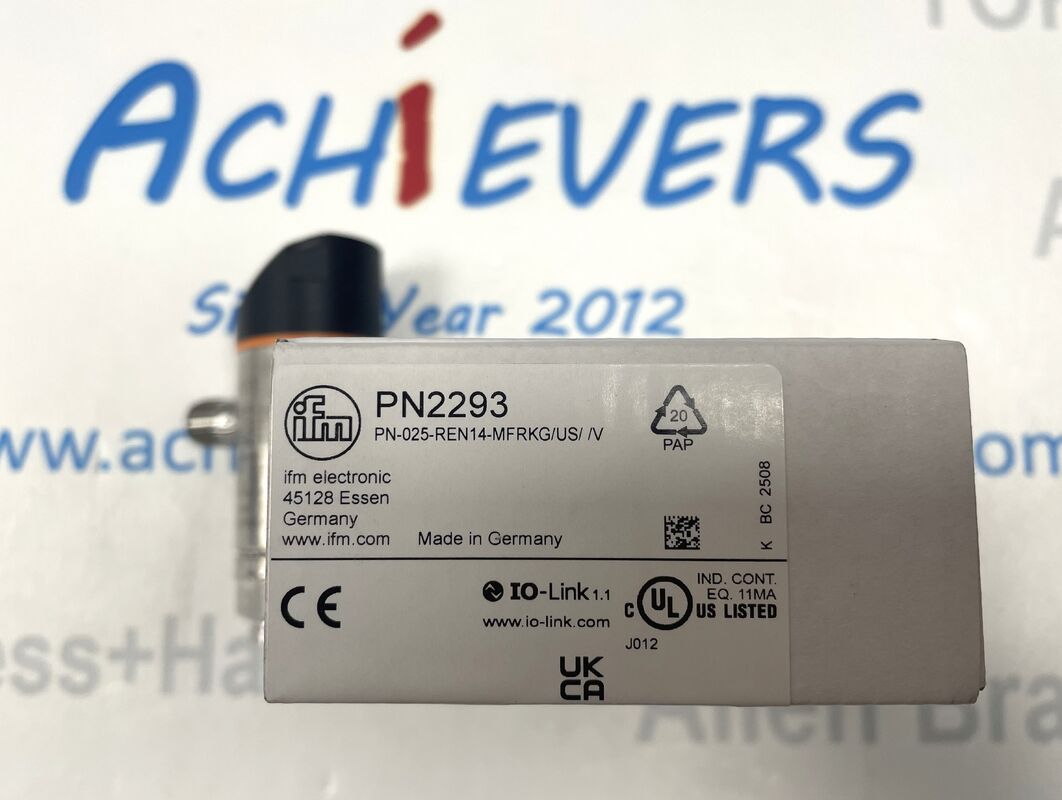

ifm PN2293 (PN-025-REN14-MFRKG/US//V)
|
|
|
Product Series
|
ifm PN Series Pressure Sensor
|
|
|
Compliance Standards
|
CE, CRN, CULUS, DIN EN 60068-2-27/6, IEC 61131-9, IO-Link, UKCA
|
|
Measurement Performance
|
Measuring Range
|
-1 to 25 bar (-14.5 to 362.5 psi / 0.1 to 2.5 MPa)
|
|
|
Pressure Type
|
Relative pressure; Vacuum (resistant to -1000 mbar)
|
|
|
Measuring Element
|
Ceramic-capacitive pressure cell
|
|
|
Proof Pressure
|
350 bar (5075 psi / 35 MPa)
|
|
|
Max Operating Pressure
|
150 bar (2175 psi / 15 MPa)
|
|
Process Connections
|
Thread Type
|
1/4" NPT internal thread
|
|
|
Wetted Materials
|
Ceramic, FKM, Stainless Steel (1.4404/316L)
|
|
Electrical Specifications
|
Operating Voltage
|
18–30 V DC (SELV/PELV compliant)
|
|
|
Current Consumption
|
mA
|
|
|
Insulation Resistance
|
≥ 100 MΩ (at 500 V DC)
|
|
|
Power-On Delay
|
0.3 seconds
|
|
Outputs
|
Digital Outputs
|
2 (PNP/NPN configurable; max 250 mA per channel)
|
|
|
Analog Outputs
|
1 (4–20 mA / 0–10 V; scalable 1:5)
|
|
|
IO-Link Support
|
Yes (programmable from one switching output)
|
|
|
Switching Frequency
|
500 Hz (DC)
|
|
|
Load Capacity
|
500 Ω (analog current); 2000 Ω (analog voltage)
|
|
Protection & Durability
|
Protection Features
|
Reverse polarity protection, short-circuit protection (pulsed), overload protection
|
|
|
Housing Material
|
PBT, PBT-GF20, PC-GF30, Stainless Steel
|
|
|
Protection Rating
|
IP67
|
|
|
Operating Temperature
|
-25°C to 80°C
|
|
Physical Traits
|
Weight
|
Approximately 0.5 lb (0.23 kg)
|
|
|
Mounting
|
Rotatable process connection (0–90° adjustment)
|
|
Functional Features
|

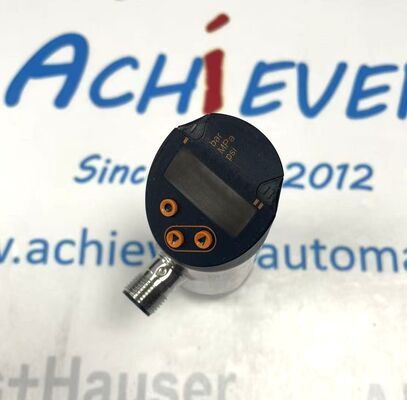

Status Display
|
Red/green LED (acceptance range indication)
|
|
|
Programming
|
Button operation or IO-Link configuration
|
|
|
Integrated Watchdog
|
Yes
|
