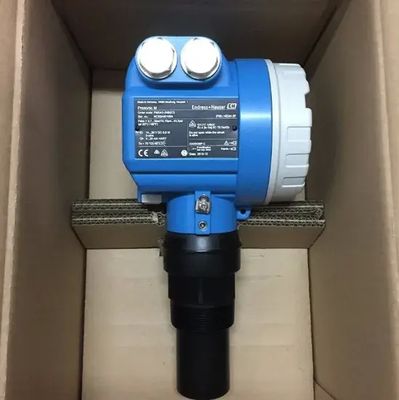

Endress Hauser FMU40-ARB1A2 Prosonic Ultrasonic Level Transmitter
Product Details:
Manufacturer : Endress+Hauser
Product No. : FMU40-ARB1A2
https://www.achievers-automation.com More Products
The FMU40-ARB1A2 is a high-performance ultrasonic level transmitter from Endress+Hauser (E+H), part of the trusted Prosonic FMU40 series. It employs time-of-flight (ToF) measurement technology to enable non-contact detection of liquids, slurries, and bulk solids, eliminating the risk of medium contamination. This cost-effective device is engineered for sophisticated level measurement in complex industrial environments, featuring a chemically resistant PVDF sensing element and a rugged aluminum housing rated IP68. Equipped with a four-line plain text display (supporting 7 languages) and on-site operation capabilities, it simplifies commissioning and troubleshooting through envelope curve visualization. With seamless HART communication integration and 32-point linearization, it easily connects to process control systems, making it ideal for storage tanks, agitators, silos, and open channel flow applications.
Detail:
| Basic Information |
Brand |
Endress+Hauser (E+H) |
|
Model |
FMU40-ARB1A2 |
|
Product Series |
Prosonic FMU40 |
|
Measurement Principle |
Time-of-Flight (ToF) ultrasonic technology |
|
Certifications |
Suitable for non-hazardous areas |
| Measurement Performance |
Measuring Range |
Liquids: 0.25–5m; Bulk solids: 0.25–2m |
|
Accuracy |
±2mm or ±0.2% of the set measuring range |
|
Resolution |
1mm |
|
Blind Zone |
0.25m (liquids and solids) |
| Electrical Parameters |
Supply Voltage/Communication |
2-wire, 4–20mA loop with HART protocol |
|
Display Function |
LC display (VU 331) with on-site operation; 7 languages supported; Envelope curve visualization |
| Mechanical Structure |
Process Connection |
G1½" thread (ISO 228) |
|
Sensor Material |
PVDF (chemically resistant) |
|
Housing Material |
Coated aluminum F12 housing |
|
Screw Union/Entry |
M20x1.5 screw union |
|
Mounting Type |
Threaded mounting; Compatible with remote display/operation (up to 20m distance) |
|
Weight |
Approx. 2.5 kg (shipping weight: 3.5 kg) |
| Environmental & Operational Limits |
Operating Temperature |
-40°C to +80°C (-40°F to 176°F) |
|
Process Pressure (Absolute) |
0.7–3 bar abs (10–44 psi) |
|
Protection Level |
IP68 (NEMA 6P) |
| Intelligent Features |
Compensation |
Built-in temperature sensor for automatic sound velocity correction |
|
Calibration |
32-point linearization; No filling/discharging required for setup |
|
Software Support |
Compatible with FieldCare software for remote operation and diagnosis |
Brand
Endress+Hauser is a global leader in providing measurement instruments, services, and solutions for the process and laboratory industries. Since its founding in 1953, the company has been committed to enhancing production efficiency, safety, and sustainability through innovative technologies. Endress+Hauser’s product portfolio covers a wide range of areas, including flow measurement, level measurement, pressure and temperature measurement, analytical instrumentation, and data management. Its solutions are widely used in industries such as chemicals, food and beverage, pharmaceuticals, oil and gas, power generation, and water and wastewater treatment.
